A flow chart depicting the inversion workflow. The 4 main sections are categorised as ''Pick control group', 'misfits and gradients', 'Compute model update', and 'Prepare mini-batch'.

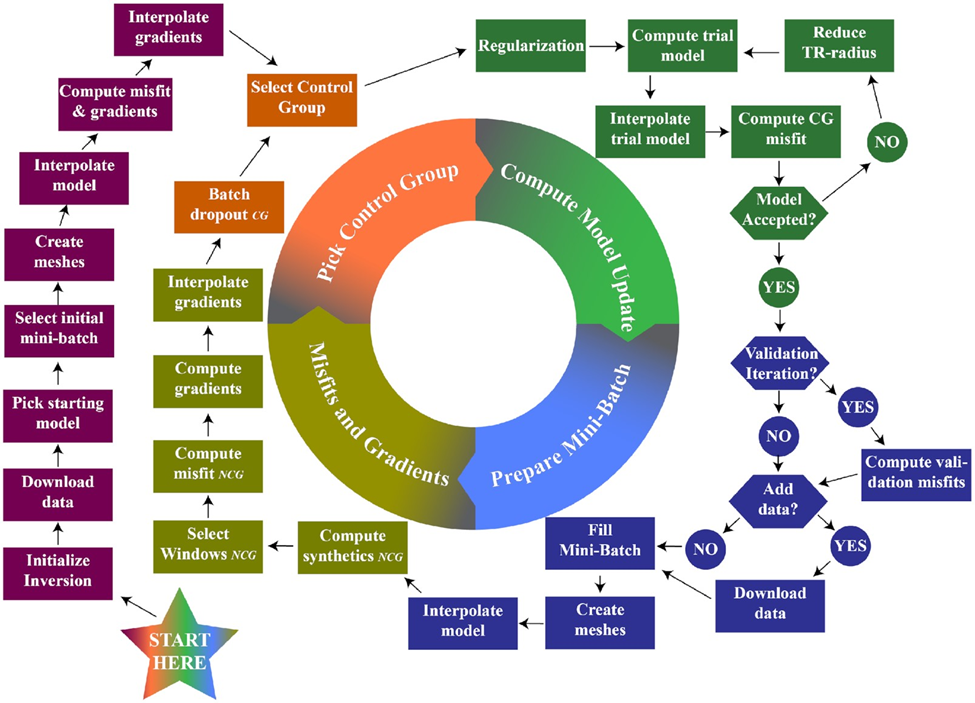

Schematic summary of the inversion workflow, implemented with the custom-built workflow manager Inversionson (Thrastarson et al. 2021b). The labels CG and NCG means that the box applies to control group events or non-control group events, respectively. The circular part of the workflow is repeated until some convergence criteria are reached.
Thrastarson et al.
